Proper stormwater management is crucial for maintaining the structure of properties and preventing environmental issues such as soil erosion and flooding. One effective method for managing stormwater is through the installation of soakwells. This blog delves into the essential factors to consider during soakwell installation, ensuring an efficient and long-lasting drainage solution.
Understanding Soakwells

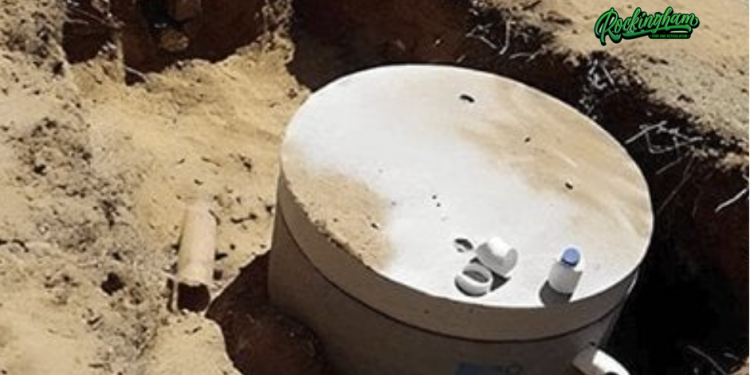

A soakwell, also known as a dry well or soak pit, is an underground structure designed to collect and disperse stormwater runoff. It allows water from surfaces like roofs and driveways to seep into the surrounding soil, replenishing groundwater levels and preventing surface water accumulation. This system is particularly beneficial in areas prone to heavy rainfall, as it mitigates the risk of waterlogging and associated damages.
Why Soakwell Installation is Essential
- Prevents Flooding: Soakwells help redirect excess rainwater into the ground, reducing the risk of localized flooding.
- Protects Foundations: Excess water pooling around a building can weaken its foundation over time. A soakwell prevents structural damage.
- Improves Groundwater Recharge: Instead of wasting rainwater, a soakwell allows it to seep into the ground, benefiting the water table.
- Reduces Soil Erosion: By controlling water runoff, soakwells prevent soil displacement in gardens and landscapes.
Key Factors in Soakwell Installation
1. Soil Composition
The type of soil on your property influences the effectiveness of a soakwell. Sandy soils offer excellent drainage, allowing water to infiltrate quickly. Conversely, clay or rocky soils have lower permeability, which can hinder water absorption and may require larger or additional soakwells to handle runoff efficiently. Assessing soil composition before installation ensures the chosen system aligns with the site’s drainage capabilities.
If the soil is not naturally well-draining, additional solutions like gravel backfill or multiple soakwells might be necessary to increase absorption rates.
2. Material Selection
Soakwells are commonly built using materials such as concrete, plastic, or polypropylene. Each material has its advantages:
Concrete Soakwells: Known for their durability and longevity, concrete soakwells can withstand significant pressure and are less prone to clogging. They are ideal for areas with heavy traffic or where long-term performance is a priority.
Plastic Soakwells: Lightweight and easy to install, plastic soakwells are cost-effective but may not offer the same longevity as concrete. They are suitable for areas with less load-bearing requirements.
Polypropylene Soakwells: Offering a balance between strength and ease of installation, polypropylene soakwells are modular and can be configured to meet specific site requirements.
Selecting the appropriate material depends on factors such as budget, expected load, and desired lifespan of the installation.
3. Sizing and Capacity
Determining the correct size and capacity of a soakwell is vital to ensure it can handle the volume of stormwater runoff. This involves calculating the catchment area (e.g., roof size), local rainfall intensity, and soil absorption rates. An undersized soakwell may lead to overflow, while an oversized one could be unnecessarily costly.
As a general rule:
A 1500L soakwell is suitable for small properties with limited roof runoff.
Larger properties or those in high-rainfall areas may require multiple soakwells or a capacity of 3000L or more.
4. Placement and Installation Timing
Strategic placement of soakwells enhances their efficiency. It’s advisable to position them at least 1.5 meters away from building foundations to prevent undermining structural integrity. Additionally, installing soakwells during the initial stages of construction, preferably at the slab stage, can prevent complications with existing utilities and landscaping.
If installed in an existing property, a thorough site assessment should be done to avoid interfering with underground pipes or tree roots, which can compromise the soakwell’s performance over time.
5. Local Regulations and Permits
It is necessary to comply with local building codes. Some jurisdictions may require permits for soakwell installation, and there could be specific guidelines regarding their design and placement. Engaging with local authorities or professionals ensures adherence to all legal requirements, preventing future legal or functional issues.
Installation Process
Step 1: Site Preparation
- Conduct a site survey to determine the best location for the soakwell.
- Dig a pit large enough to accommodate the soakwell and additional gravel backfill if required.
- Ensure proper distance from building foundations, driveways, and underground utilities.
Step 2: Installing the Soakwell
- Place a layer of gravel at the base of the pit to improve drainage.
- Position the soakwell inside the pit and ensure it is level.
- Connect downpipes or stormwater drainage systems to the soakwell.
Step 3: Backfilling and Compaction
- Surround the soakwell with gravel or crushed rock to enhance permeability.
- Backfill the remaining pit with soil, ensuring minimal air gaps.
- Flatten the soil to prevent settling over time.
Cost Considerations
The cost of soakwell installation varies depending on factors such as material, size, site preparation requirements, and labor costs. On average:
DIY installation: Costs between $200 to $800 for small plastic or polypropylene soakwells.
Professional installation: Costs range from $1,500 to $5,000, depending on complexity and material selection.
Although professional installation may have a higher upfront cost, it ensures proper placement, compliance with regulations, and long-term efficiency.
Conclusion
Proper soakwell installation is crucial for sustainable stormwater management. By carefully considering factors such as soil composition, material selection, sizing, placement, and adherence to local regulations, property owners can implement a drainage solution that protects their soakwell and the environment. Engaging with professionals throughout the process ensures that the system is customised to the specific needs of the site, providing long-term functionality.
Investing in a well-planned soakwell system will not only enhance property value but also contribute to environmental sustainability by managing stormwater efficiently and preventing potential damage from water accumulation.
